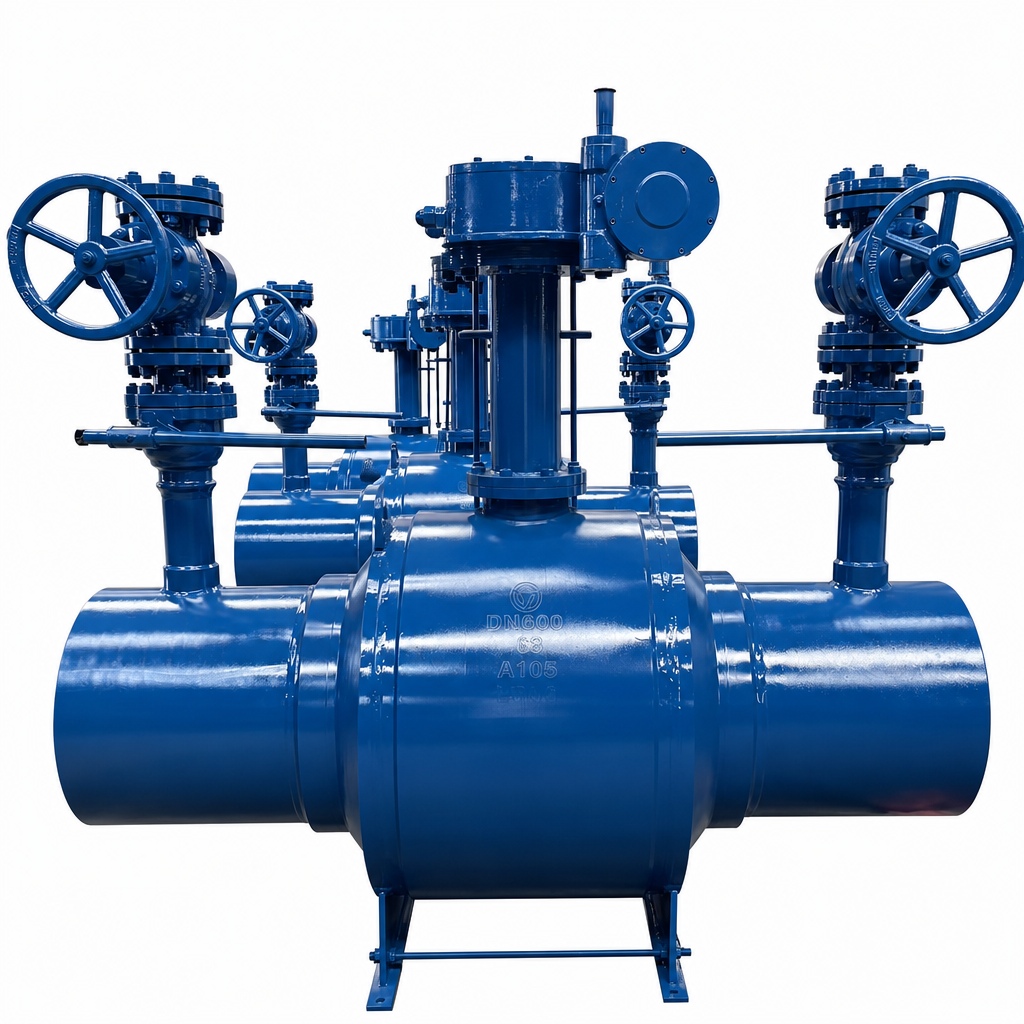

Fully-Welded Trunnion Ball Valve with Bypass
Fully-Welded Trunnion Ball Valve with Bypass (Butt-Weld Ends)
This fully-welded ball valve is designed for long-distance oil and gas pipeline service where zero external leakage and maximum reliability are required. The one-piece welded body eliminates flange joints and potential leak paths, while the butt-weld ends form a fully integral connection with the pipeline. The trunnion-mounted ball design supports line pressure through fixed upper and lower stems, providing low operating torque and tight, reliable shut-off under high-pressure conditions.
The extended bonnet stem allows installation in buried, underground, or shallow-trench applications where operation must take place above ground. Two bypass lines with side-entry ball valves (one on each side) balance pressure across the main valve before operation, reducing torque and protecting seats during opening and closing. A welded support stand provides stable installation in horizontal or vertical pipeline runs.
The valve body is fabricated from high-grade carbon steel or stainless steel and fully stress-relieved after welding. Cavity pressure relief, anti-static device, and fire-safe seat design are standard. The sealed, maintenance-free construction makes it ideal for trunk pipelines, compressor stations, and underground vaults where accessibility is limited.
Available in butt-weld ends per ASME B16.25, sizes NPS 2 through 48 (DN50-DN1200), pressure Class 150 through 900 (PN16-PN160). Body materials include WCB, LCC, A105, CF8, CF8M, and duplex. Seat options include PTFE, RPTFE, Devlon, and metal-to-metal. Actuation can be manual, worm gear, electric, pneumatic, or hydraulic.
